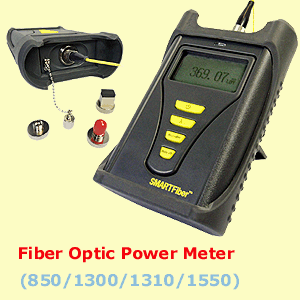

SMARTFiber - Lightweight Fiber Optic Power Meter
Standard SMARTFiber with four wavelengths is an easy to use and lightweight fiber optic power meter that measures the power of light transmitting from an optical fiber.
The SMARTFiber includes interchangeable adaptor to connect FC, ST and SC type fiber connectors. It utilizes an InGaAs detector to improved sensitivity and temperature stability to test for standard optical power from +3 to -60dBm dynamic range. It can test both single-mode and multi-mode fiber cables, with the optional adaptor, users can test 2.5mm and 1.25mm fiber cables. For identification purposes, the SMARTFiber can also receive modulate signals(270Hz, 1KHz, 2KHz) simultaneously.
For fast and easy operation in testing the corresponding wavelengths, we recommend the Hobbes OPTISource as a complete set in auto-identifying wavelength of optical power source.
Features
• Simple to use and portable
• Calibrated at 850nm, 1300nm, 1310nm, 1550nm
• Accuracy: ±0.15dB±1nW@1300nm/1310nm/1550nm; ±0.25dB±1nW@850nm
• Optical power range from +3 to –60dBm
• Measurement units in dBm and Watt
• Ideal for both multi–mode and single–mode optical fibers
• Optional adapter to test both 2.5mm/1.25mm fiber cables
• Can receive modulate signal (270Hz, 1kHz, 2kHz) simultaneously for identification
• Battery indicator and power auto off function
• Automatic wavelength detection (when used with Hobbes OPTISource as optical light source)
Specification
Wavelength: 850nm, 1300nm, 1310nm, 1550nm
Sensor type: InGaAs
Dynamic range: +3 to –60dBm
Accuracy: ±0.15dB±1nW@1300nm /1310nm /1550nm; ±0.25dB±1nW@850nm
Resolution: 0.01dBm
Unit: dBm, Watt
Fiber connector: Interchangeable adaptor for FC, ST and SC
2.5mm to 1.25mm adapter spec.: Insertion Loss: =0.3dB Pull strength test: 100~300g, 2.5mm and 1.25mm universal
Operating temp.: -10°C to 50°C
Storage temp.: -40°C to 70°C
Battery: AAA battery x 4(6V)
Dimensions: Around 131x86x40 mm
Weight: 230g
|
