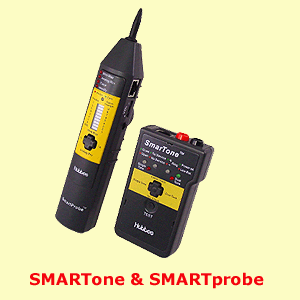

The SMARTone & SMARTprobe

SMARTone & SMARTprobe Network Installation and Troubleshooting Tool

The SMARTone & SMARTprobe is a revolutionary network installation and trouble shooting tool, it goes entirely above and beyond the traditional methods to trace and identify cables. In the past, when using tone and probe tool you had to listen quite closely to identify the tone signals; it was easy to confuse the signal with surrounding noise making it difficult to be certain of the results.

The SMARTone & SMARTprobe uses advanced digital signal technology to trace and identify cables in high speed and high precision; avoiding noise and false signals. It is a true breakthrough beyond traditional testing methods.

The SMARTone and SMARTprobe is compatible with traditional analog tone generators. Finally, it is not only a digital Tone and Probe but also a cable tester; it can test cable continuity, telephone service/polarity, and even wire mapping.


Uses digital signal technology, avoiding noise and false signals
Traces and identifies cables quickly and accurately
Traces cables at a distance
Identifies cables in bundles or at patch panels
Sends digital/analog tones in two distinct modes: one note–tone and two note–tone
Receiving tone sensitivity level: 9 levels
LED Bar and speaker are used as indicators
Can use probe to trace traditional 1kHz analog tone
Cable map: pin–to–pin test for cable opened/shorted/reversed/crossed/mis–wired
Telephone service and polarity test: +polarity; –polarity; ringing
Probe has an adjustable speaker volume level suitable for various work environments
Auto Power–off and low battery indicator
Complied with IEEE802.3af standard

Output power: 5V
Voltage protection: 100V (TEL Check)
Tone frequency: Encoded digital tone signal; Legacy 1KHz analog tone signal
Power supply and life: 9V square battery; the power consumption is less than 15mA
Auto power off: Auto power off after 30 min. without using.
Dimension: 104 x 63 x 25mm
Weight: 108g
Tone detection: Detect digital tone from SMARTone and 1K Hz analog tone from traditional toner
Power supply and life: 9V battery, the power consumption is about 45~Max. 70mA
Power switch: Manual power on/off switch
Dimensions: 205 x 35 x 33.5mm
Weight: 100g

SMARTone & SMARTprobe Network Installation and Troubleshooting Tool

Order online

Click here to order online

Part Number T3029
