LANsmart Multi-Function Network Cable Tester

The LANsmart Cable Tester is a high-tech, multifunctional cable tester. In addition to detecting basic wire connections like open, short, miss-wired and split pairs, it can also measure the cable length using TDR technology in real time. The LANsmat displays the results in pin to pin format. When there is any open/short fault in the cable, LANsmart will detect, locate, and display the fault. LANsmart can also send out audio signals to help find the corresponding cables; users can also send out auto negation signals to find out the corresponding hub / switch ports.

Incorporates of TDR ( Time Domain Refectmetek) technology.

Test for shorts, opens, miswires, reversals, split pairs and shield continuity.

Built-in PORT finder to locate corresponding sockets on Hub /Switch.

Measures length on UTP and STP cable without remotes.

Velocity of propagation adjustable calibrate ability.

Locates problems in both meters and feet standards

Tone generator sends signals to either all or selected pin conductor/s.

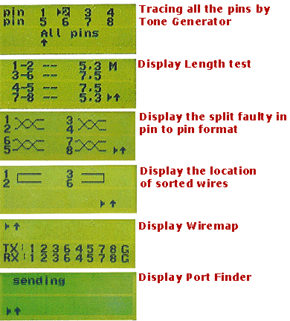

Test results displayed in pin to pin / wire map format.

Compatible with any twisted pair of category 3/4/5 and 6 cables.

Battery operated, compact and easy to use.


	LANsmart is compact, ergonomic, and easy operate. Its advance functionalities and versality make LANsmart an ALL-IN-ONE tester suitable for all professional technicians and installers.


		Order online

Part Number T3038

$365.00


	Call us on 1-888 608-5180 if you wish to make a purchase.
