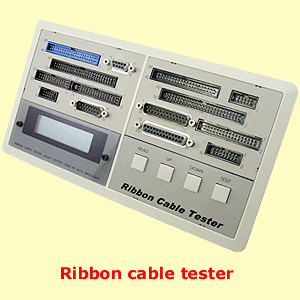

Ribbon Cable Tester
The Ribbon Cable Tester is designed to test the most commonly used flat cables for wiring continuity, opens, shorts, any mis-wiring. An intelligent CPU will memorize the correct wiring configuration for an flat cable, thus enabling mass production cable assemblies to test one cable after another for pass or fail status. It is an excellent tester for system integrators to perform inexpensive tests on internal PC cables.
Connectors: TX: IDC 50/40/34/26/10 Male, DB15 Male DB9 Female, RX: IDC 50/40/34/16/10 Male, DB25 M/F
Control switch: READ, UP, DOWN, TEST
Display: LCD display with back light
Battery: 9V DC battery or 9V DC 150mA Power Adapter
Dimensions: 250mm x 134mm x 35mm
Weight: 1.76lbs
|
