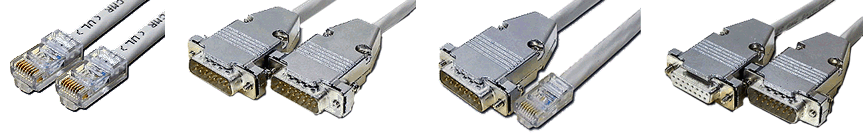

High speed T1 Cables

The Cable for high-speed T1 Connections
T1 cables
High-speed T1 Cables

 Connects CSU/DSU to DDS lines
High-speed T1 Cables

 PVC construction
High-speed T1 Cables

 RJ-48X Connector for 56K. T1,



 Frame relay, and ISDN line connections.

See below for Pin-outs

Order online
Click here to order online

Part

 RJ-48 to RJ-48 T1 Cables



Cost

R8200

 3ft (0.90mtr) RJ48 to RJ48 T1 Cable - Straight pinned
RJ48 to RJ48 T1 Cable

18.50

R8201

 5ft (1.52mtr) RJ48 to RJ48 T1 Cable - Straight pinned
RJ48 to RJ48 T1 Cable

19.50

R8202

 10ft (3.04mtr) RJ48 to RJ48 T1 Cable - Straight pinned
RJ48 to RJ48 T1 Cable

22.50

R8203

 25ft (7.62mtr) RJ48 to RJ48 T1 Cable - Straight pinned
RJ48 to RJ48 T1 Cable

34.50

R8204

 3ft (0.90mtr) RJ48 to RJ48 T1 Cable - Crossed pinned
RJ48 to RJ48 T1 Cable

18.50

R8205

 5ft (1.52mtr) RJ48 to RJ48 T1 Cable  - Crossed pinned
RJ48 to RJ48 T1 Cable

19.50

R8206

 10ft (3.04mtr) RJ48 to RJ48 T1 Cable  - Crossed pinned
RJ48 to RJ48 T1 Cable

22.50

R8207

 25ft (7.62mtr) RJ48 to RJ48 T1 Cable  - Crossed pinned

RJ48 to RJ48 T1 Cable

34.50

Part

 D-sub 15 Male  to D-sub 15 Male  T1 Cables



Cost

R8208

 3ft (0.90mtr) D15M to D15M T1 Cable - Straight pinned
D-sub 15 Male to D-sub 15 Male T1 Cables

21.50

R8209

 5ft (1.52mtr) D15M to D15M T1 Cable - Straight pinned
D-sub 15 Male to D-sub 15 Male T1 Cables

26.50

R8210

 10ft (3.04mtr) D15M to D15M T1 Cable - Straight pinned
D-sub 15 Male to D-sub 15 Male T1 Cables

31.50

R8211

 25ft (7.62mtr) D15M to D15M T1 Cable - Straight pinned
D-sub 15 Male to D-sub 15 Male T1 Cables

39.50

R8212

 3ft (0.90mtr) D15M to D15M T1 Cable - Crossed pinned
D-sub 15 Male to D-sub 15 Male T1 Cables

21.50

R8213

 5ft (1.52mtr) D15M to D15M T1 Cable  - Crossed pinned
D-sub 15 Male to D-sub 15 Male T1 Cables

26.50

R8214

 10ft (3.04mtr) D15M to D15M T1 Cable  - Crossed pinned
D-sub 15 Male to D-sub 15 Male T1 Cables

31.50

R8215

 25ft (7.62mtr) D15M to D15M T1 Cable  - Crossed pinned
D-sub 15 Male to D-sub 15 Male T1 Cables

39.50

Part

 D-sub 15 Male  to RJ-48  T1 Cables



Cost

R8216

 3ft (0.90mtr) D15M to RJ48 T1 Cable - Straight pinned
D15M to RJ48 T1 Cable

21.50

R8217

 5ft (1.52mtr) D15M to RJ48 T1 Cable - Straight pinned

D15M to RJ48 T1 Cable

26.50

R8218

 10ft (3.04mtr) D15M to RJ48 T1 Cable - Straight pinned

D15M to RJ48 T1 Cable

31.50

R8219

 25ft (7.62mtr) D15M to RJ48 T1 Cable - Straight pinned

D15M to RJ48 T1 Cable

39.50

R8220

 3ft (0.90mtr) D15M to RJ48 T1 Cable - Crossed pinned

D15M to RJ48 T1 Cable

21.50

R8221

 5ft (1.52mtr) D15M to RJ48 T1 Cable - Crossed pinned

D15M to RJ48 T1 Cable

26.50

R8222

 10ft (3.04mtr) D15M to RJ48 T1 Cable - Crossed pinned
D15M to RJ48 T1 Cable

31.50

R8223

 25ft (7.62mtr) D15M to RJ48 T1 Cable - Crossed pinned

D15M to RJ48 T1 Cable

39.50

Part

 D-sub 15 Male  to D-sub 15 Female  T1 Cables



Cost

R8224

 3ft (0.90mtr) D15M to D15F T1 Cable - Straight pinned

D-sub 15 Male to D-sub 15 Female T1 Cables

26.50

R8225

 5ft (1.52mtr) D15M to D15F T1 Cable - Straight pinned

D-sub 15 Male to D-sub 15 Female T1 Cables

28.50

R8226

 10ft (3.04mtr) D15M to D15F T1 Cable - Straight pinned

D-sub 15 Male to D-sub 15 Female T1 Cables

34.50

R8227

 25ft (7.62mtr) D15M to D15F T1 Cable - Straight pinned

D-sub 15 Male to D-sub 15 Female T1 Cables

45.50

R8228

 3ft (0.90mtr) D15M to D15F T1 Cable - Crossed pinned

D-sub 15 Male to D-sub 15 Female T1 Cables

26.50

R8229

 5ft (1.52mtr) D15M to D15F T1 Cable  - Crossed pinned

D-sub 15 Male to D-sub 15 Female T1 Cables

28.50

R8230

 10ft (3.04mtr) D15M to D15F T1 Cable  - Crossed pinned

D-sub 15 Male to D-sub 15 Female T1 Cables

34.50

R8231

 25ft (7.62mtr) D15M to D15F T1 Cable  - Crossed pinned

D-sub 15 Male to D-sub 15 Female T1 Cables

45.60

RJ

--------

RJ

STRAIGHT Pinning

1

--------

1

Orange/White

2

--------

2

White/Orange

3

--------

3

N/C

4

--------

4

Blue/White

5

--------

5

White/Blue

6

--------

6

N/C

7

--------

7

Drain from Blue

8

--------

8

Drain from Orange

RJ

--------

RJ

CROSS Pinning

1

--------

4

Orange/White

2

--------

5

White/Orange

3

--------

x

N/C

4

--------

1

Blue/White

5

--------

2

White/Blue

6

--------

x

N/C

7

--------

7

Drain from Blue

8

--------

8

Drain from Orange
